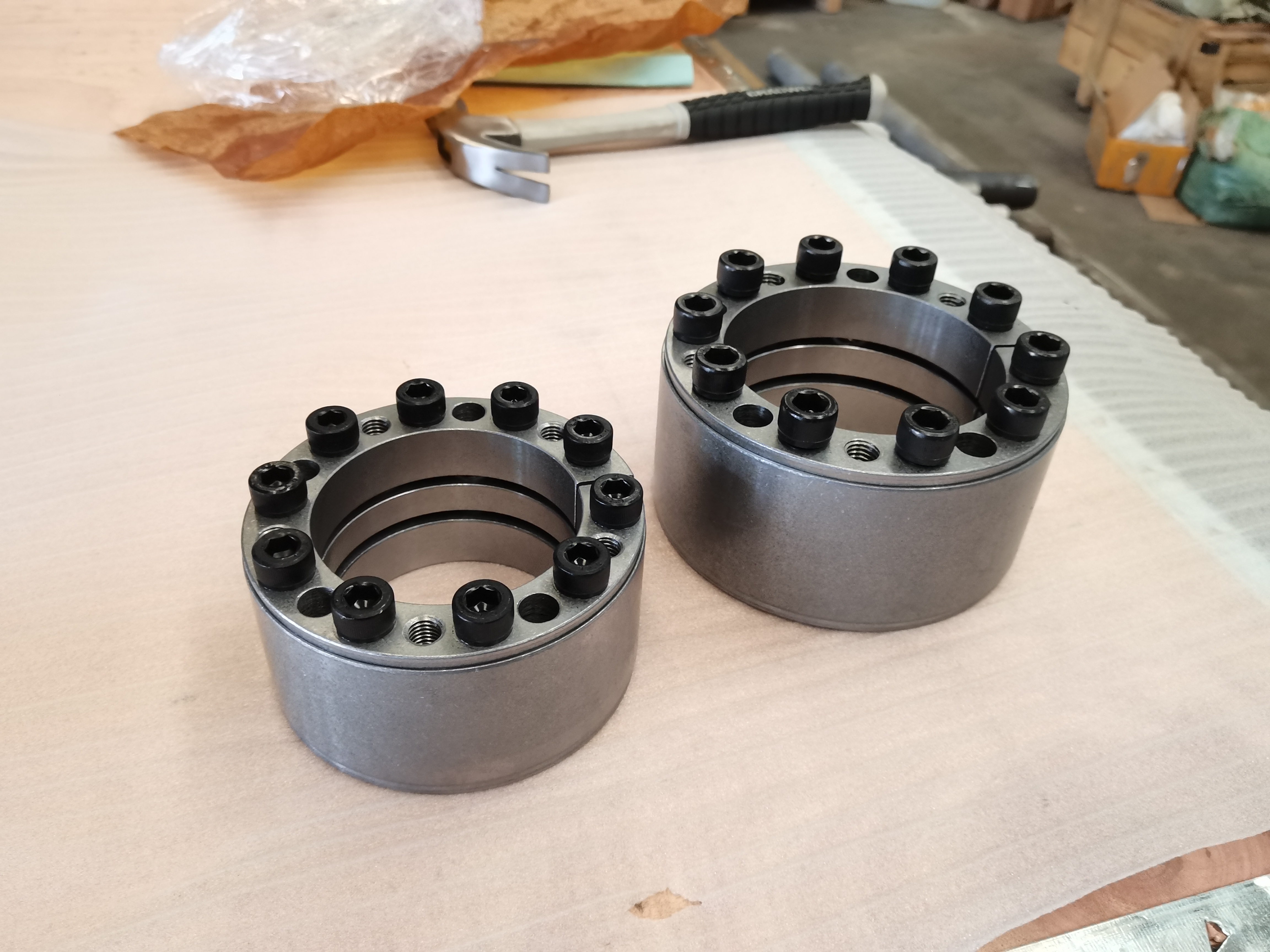

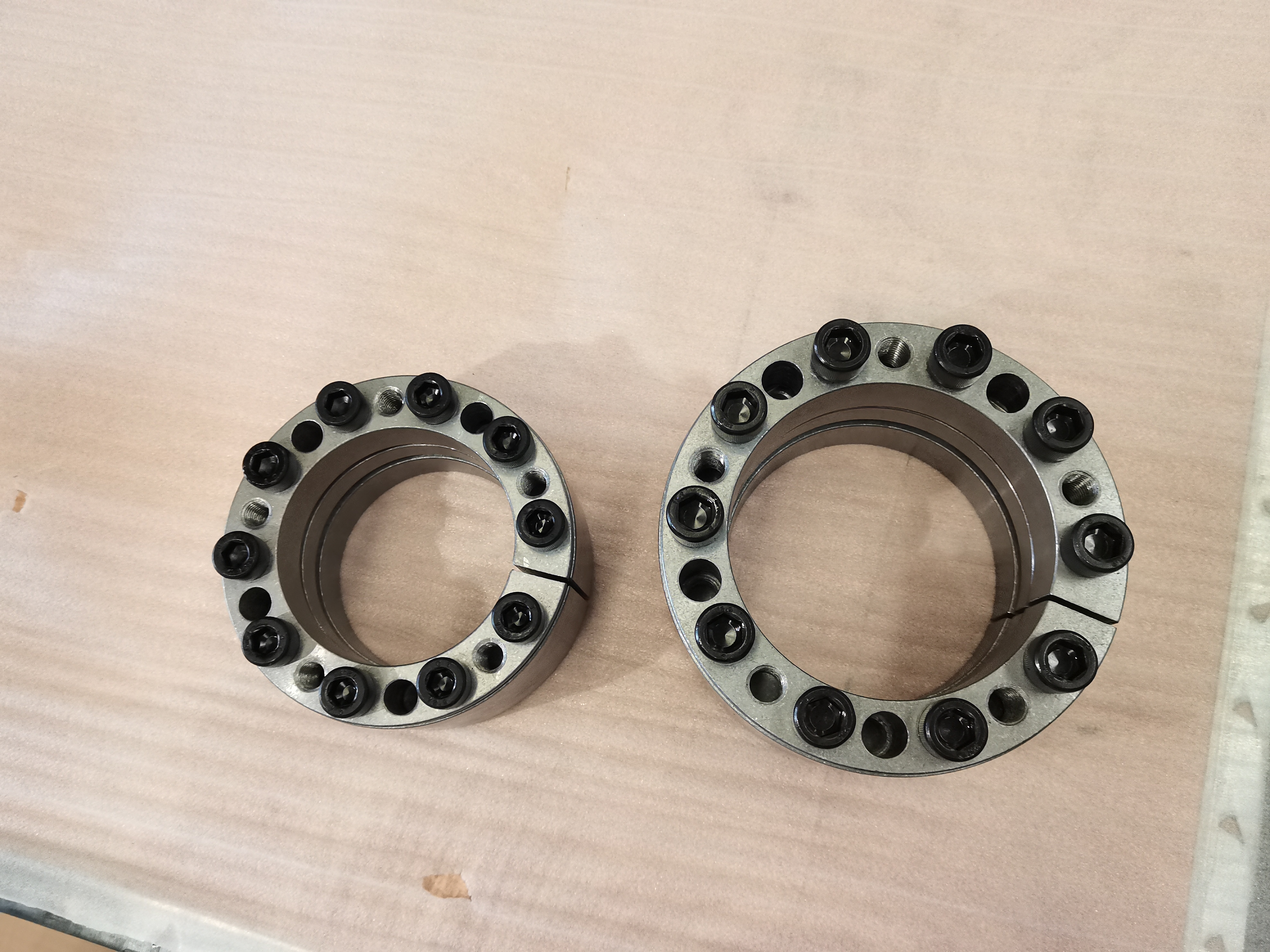

Z12B C45 Steel Shaft Locking Device for Printing Machine
Product Description
The shaft locking device is a new type of connection. It is a keyless coupling device that realizes load transmission by tightening high-strength bolts to generate positive pressure and the frictional force between the expansion sleeve and the shaft or between the containment surface of the sleeve. It has many unique advantages and characteristics compared with the traditional mechanical connection methods of non-bonded and keyed connections with general interference.

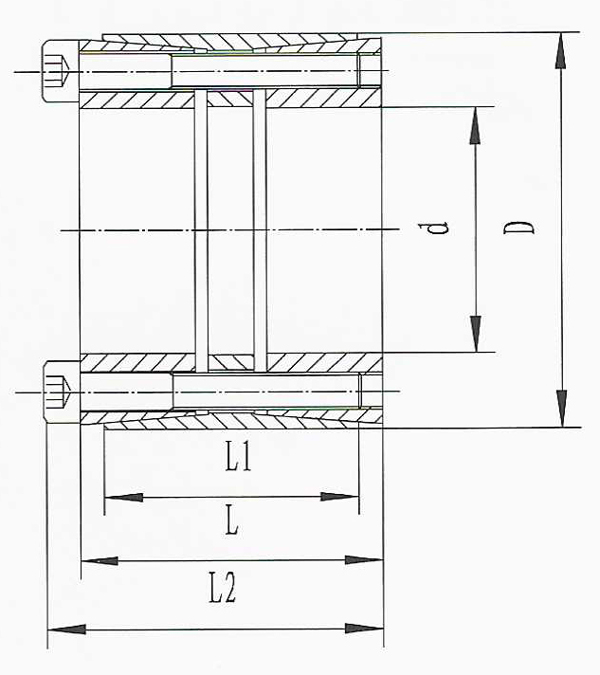

Diagram of Z12B Shaft Locking Device
Advantages
1. The use of expansion sleeves makes the manufacture and installation of main machine parts simple.
2. Long service life.
3. The expansion sleeve will lose its coupling function when overloaded, which can protect the equipment from damage.
4. Can withstand a variety of loads.
5. Easy to disassemble.
Basic Dimensions and Parameters of Z12B Shaft Locking Device
| Size (mm) | Dimensions (mm) | Rated Load | Contact Pressure | Locking Screws (G.12.9) | Approx Weight (KG) |
| d x D x L | L1 | L2 | Axial (KN) | Torque (N.m) | Shaft (Mpa) | Hub (Mpa) | Tightening (N.m) |
| 25 x 50 x 45 28 x 55 x 45 30 x 55 x 45 | 39 39 39 | 51 51 51 | 76 76 76 | 950 1070 1150 | 245 219 204 | 122 111 111 | 17 17 17 | 0.50 0.60 0.60 |
| 35 x 60 x 45 38 x 65 x 45 40 x 65 x 45 | 39 39 39 | 51 51 51 | 76 90 104 | 1340 1450 1530 | 175 161 153 | 102 94 94 | 17 17 17 | 0.70 0.70 0.70 |
| 42 x 75 x 45 45 x 75 x 45 42 x 75 x 64 | 39 39 56 | 51 51 72 | 120 138 122 | 2910 3087 2970 | 188 175 188 | 105 105 105 | 41 41 41 | 0.90 0.87 1.00 |
| 45 x 75 x 64 48 x 80 x 64 50 x 80 x 64 | 56 56 56 | 72 72 72 | 141 166 192 | 3150 4000 4850 | 175 164 159 | 105 98 102 | 41 41 41 | 0.90 1.40 1.26 |
| 55 x 85 x 64 60 x 90 x 64 65 x 95 x 64 | 56 56 56 | 72 72 72 | 194 249 256 | 5160 7460 8400 | 140 170 163 | 93 117 114 | 41 41 41 | 1.36 1.46 1.55 |
| 70 x 110 x 60 80 x 120 x 60 90 x 130 x 60 | 50 50 50 | 70 70 70 | 120 150 165 | 4180 5980 7400 | 113 124 121 | 64 73 75 | 83 83 83 | 2.30 2.50 2.70 |
| 100 x 145 x 70 110 x 155 x 70 120 x 165 x 70 | 60 60 60 | 82 82 82 | 219 219 241 | 10930 12000 14400 | 121 110 111 | 74 69 72 | 145 145 145 | 4.10 4.40 4.80 |
| 130 x 180 x 79 140 x 190 x 79 150 x 200 x 79 | 65 65 65 | 91 91 91 | 306 328 328 | 19900 22900 24600 | 118 117 110 | 77 78 74 | 145 145 145 | 6.30 6.60 7.80 |
| 160 x 210 x 79 170 x 225 x 92 180 x 235 x 92 | 65 78 78 | 91 106 106 | 350 446 446 | 28000 37800 40100 | 110 109 103 | 75 74 71 | 145 230 230 | 7.40 10.7 11.3 |
| 190 x 250 x 102 200 x 260 x 102 220 x 285 x 108 | 88 88 96 | 116 116 124 | 475 535 624 | 45100 53400 68600 | 90 96 94 | 62 67 66 | 230 230 355 | 14.6 15.3 20.2 |
| 240 x 305 x 108 260 x 325 x 108 280 x 355 x 110 | 96 96 96 | 124 124 130 | 832 832 979 | 99800 108000 137000 | 115 106 122 | 82 77 85 | 355 355 690 | 21.8 23.4 30.0 |
| 300 x 375 x 110 | 96 | 130 | 1044 | 156000 | 121 | 86 | 690 | 31.2 |
